PostSubject: Enclosure Sketchups   Enclosure Sketchups Empty7/19/2010, 3:21 pm

This thread will be for all our Enclosure Sketchups. Feel free to look through them. Some might give you a few ideas. Wink

Enclosure Sketchups 2-15_s10

Enclosure Sketchups 10w6v211

Enclosure Sketchups 2_l5_s10

Enclosure Sketchups Marqui10

This one was hush, hush, but seeing as it was never built be the intended person, lol, might as well share it with a few more people... one person is already doing well with it.

Enclosure Sketchups Top_se10

This one was fun, can't wait to hear it, lol.

Enclosure Sketchups Zeptop10

I've got dozens more I can add. I'll put some of the better ones up later.

Enjoy the sketchups to come.


_________________
Paul Bennett
Owner/Operator @ Deadly Sones Amp Repair
Enclosure Sketchups Mybanner4a8b03384ba5bEnclosure Sketchups Cda7c418-2e85-4269-954f-a513e1dc5cec_zpsd3582ffa

Who needs to knock, when you have BASS!!


Last edited by DeadlySones on 12/17/2010, 4:32 pm; edited 1 time in total
Back to top Go down
http://www.deadlysonesamprepair.com
DeadlySones
Admin
DeadlySones

Posts : 679
Join date : 2010-07-09
Age : 42
Location : Windsor, Ontario

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty8/22/2010, 4:06 pm

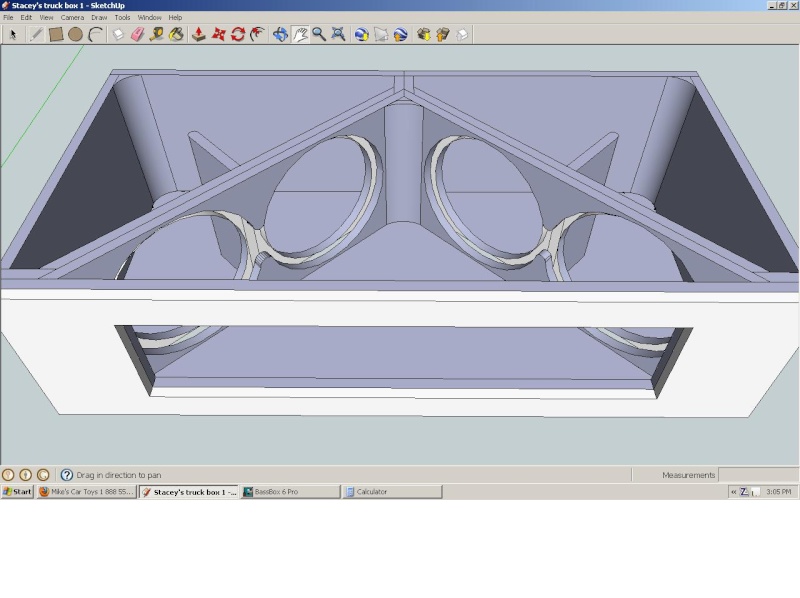

Here's an idea for a truck blowthrough. This one is 4-15's, 6 cubes each chamber.

Enclosure Sketchups Stacey11

_________________
Paul Bennett
Owner/Operator @ Deadly Sones Amp Repair
Enclosure Sketchups Mybanner4a8b03384ba5bEnclosure Sketchups Cda7c418-2e85-4269-954f-a513e1dc5cec_zpsd3582ffa

Who needs to knock, when you have BASS!!
Back to top Go down
http://www.deadlysonesamprepair.com
DeadlySones
Admin
DeadlySones

Posts : 679
Join date : 2010-07-09
Age : 42
Location : Windsor, Ontario

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty8/31/2010, 12:38 pm

Another blow through idea... 6th order. THIS BOX IS HUGE!!! 55.5" DEEP! 4 15's, 15 cubes rear tuned to 32hz, front is 6.5 cubes tuned to 66hz.

Enclosure Sketchups Stacey18

_________________
Paul Bennett
Owner/Operator @ Deadly Sones Amp Repair
Enclosure Sketchups Mybanner4a8b03384ba5bEnclosure Sketchups Cda7c418-2e85-4269-954f-a513e1dc5cec_zpsd3582ffa

Who needs to knock, when you have BASS!!


Last edited by DeadlySones on 8/31/2010, 5:17 pm; edited 2 times in total
Back to top Go down
http://www.deadlysonesamprepair.com
XquisitesoundZ
Moderators


Posts : 140
Join date : 2010-07-09
Age : 40
Location : Dub City

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty8/31/2010, 5:15 pm

Those are BAD ass designs bro you are getting good with those.
Back to top Go down
DeadlySones
Admin
DeadlySones

Posts : 679
Join date : 2010-07-09
Age : 42
Location : Windsor, Ontario

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty9/3/2010, 8:04 pm

Here is a bigger BP4 for 4 15's blowthrough.

Enclosure Sketchups Bp4_4-11

_________________
Paul Bennett
Owner/Operator @ Deadly Sones Amp Repair
Enclosure Sketchups Mybanner4a8b03384ba5bEnclosure Sketchups Cda7c418-2e85-4269-954f-a513e1dc5cec_zpsd3582ffa

Who needs to knock, when you have BASS!!
Back to top Go down
http://www.deadlysonesamprepair.com
DeadlySones
Admin
DeadlySones

Posts : 679
Join date : 2010-07-09
Age : 42
Location : Windsor, Ontario

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty9/4/2010, 8:48 am

Here is my new SPL enclosure.

Enclosure Sketchups Windst10

Enclosure Sketchups Windst11

Enclosure Sketchups Windst12

_________________
Paul Bennett
Owner/Operator @ Deadly Sones Amp Repair
Enclosure Sketchups Mybanner4a8b03384ba5bEnclosure Sketchups Cda7c418-2e85-4269-954f-a513e1dc5cec_zpsd3582ffa

Who needs to knock, when you have BASS!!
Back to top Go down
http://www.deadlysonesamprepair.com
DeadlySones
Admin
DeadlySones

Posts : 679
Join date : 2010-07-09
Age : 42
Location : Windsor, Ontario

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty11/20/2010, 12:43 pm

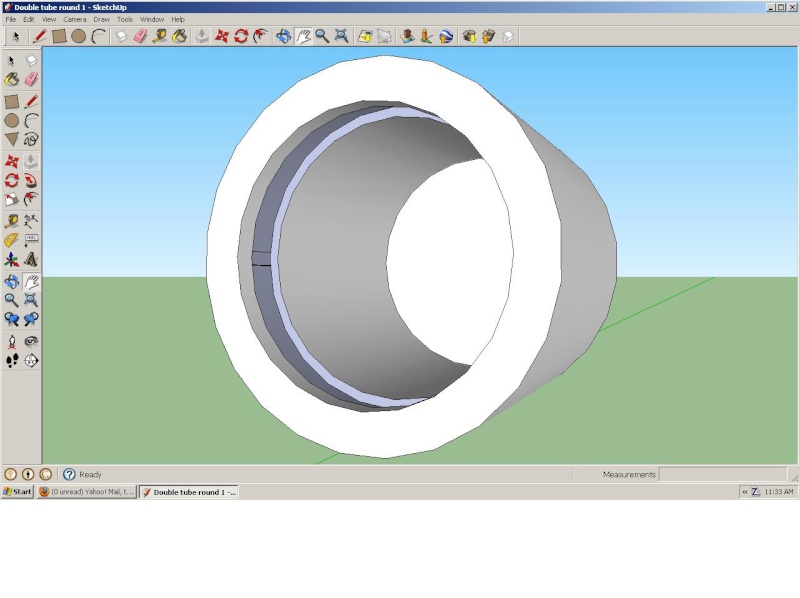

Here is a TDS exclusive sneak preview of the next enclosure I'm going to tinker with. Twisted Evil This one is hush, hush...

Enclosure Sketchups Double10

Enclosure Sketchups Double11

I've never seen anyone try this yet, but it sort of popped into my mind... dunno This design I can either port from rear to around sub face, or from near sub basket to rear of enclosure... Very Happy

_________________
Paul Bennett
Owner/Operator @ Deadly Sones Amp Repair
Enclosure Sketchups Mybanner4a8b03384ba5bEnclosure Sketchups Cda7c418-2e85-4269-954f-a513e1dc5cec_zpsd3582ffa

Who needs to knock, when you have BASS!!
Back to top Go down
http://www.deadlysonesamprepair.com
DeadlySones
Admin
DeadlySones

Posts : 679
Join date : 2010-07-09
Age : 42
Location : Windsor, Ontario

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty12/8/2010, 3:31 pm

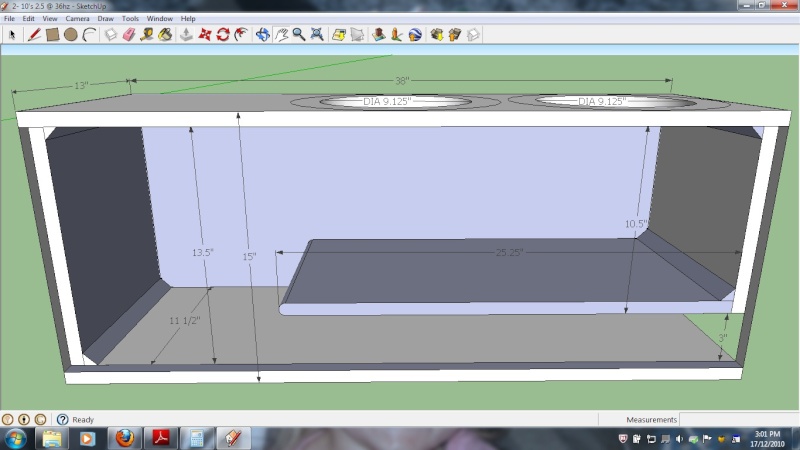

Here's a design for 2 - 10's... 2.5cubes @ 36hz. Simple, yet effective. Wink

Enclosure Sketchups Stacey14

Cut List:

2 - 13.5" x 38" Front/Back Sides
2 - 13" x 38" Top/Bottom
1 - 11.5" x 13.5" Side opposite port
1 - 11.5" x 10.5" Port Side wall
1 - 11.5" x 25.25" Port Board
4- .75" x 11.5" 45 degree angles


_________________
Paul Bennett
Owner/Operator @ Deadly Sones Amp Repair
Enclosure Sketchups Mybanner4a8b03384ba5bEnclosure Sketchups Cda7c418-2e85-4269-954f-a513e1dc5cec_zpsd3582ffa

Who needs to knock, when you have BASS!!
Back to top Go down
http://www.deadlysonesamprepair.com
TheProdigy
Admin


Posts : 249
Join date : 2010-07-19
Age : 29

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty5/30/2012, 8:37 pm

Enclosure Sketchups Finish10

First box design on Google SketchUp...

5 Cubes @ 37hz
Back to top Go down
TheProdigy
Admin


Posts : 249
Join date : 2010-07-19
Age : 29

Enclosure Sketchups Empty
PostSubject: Re: Enclosure Sketchups   Enclosure Sketchups Empty5/30/2012, 8:50 pm

Another pic with dimensions

I didnt bother going back to draw in the double baffle cuz it would be too much work at this point lol I think youll get the idea...

Enclosure Sketchups 4-10_d10
Back to top Go down
